Mahi Rahman

Overview

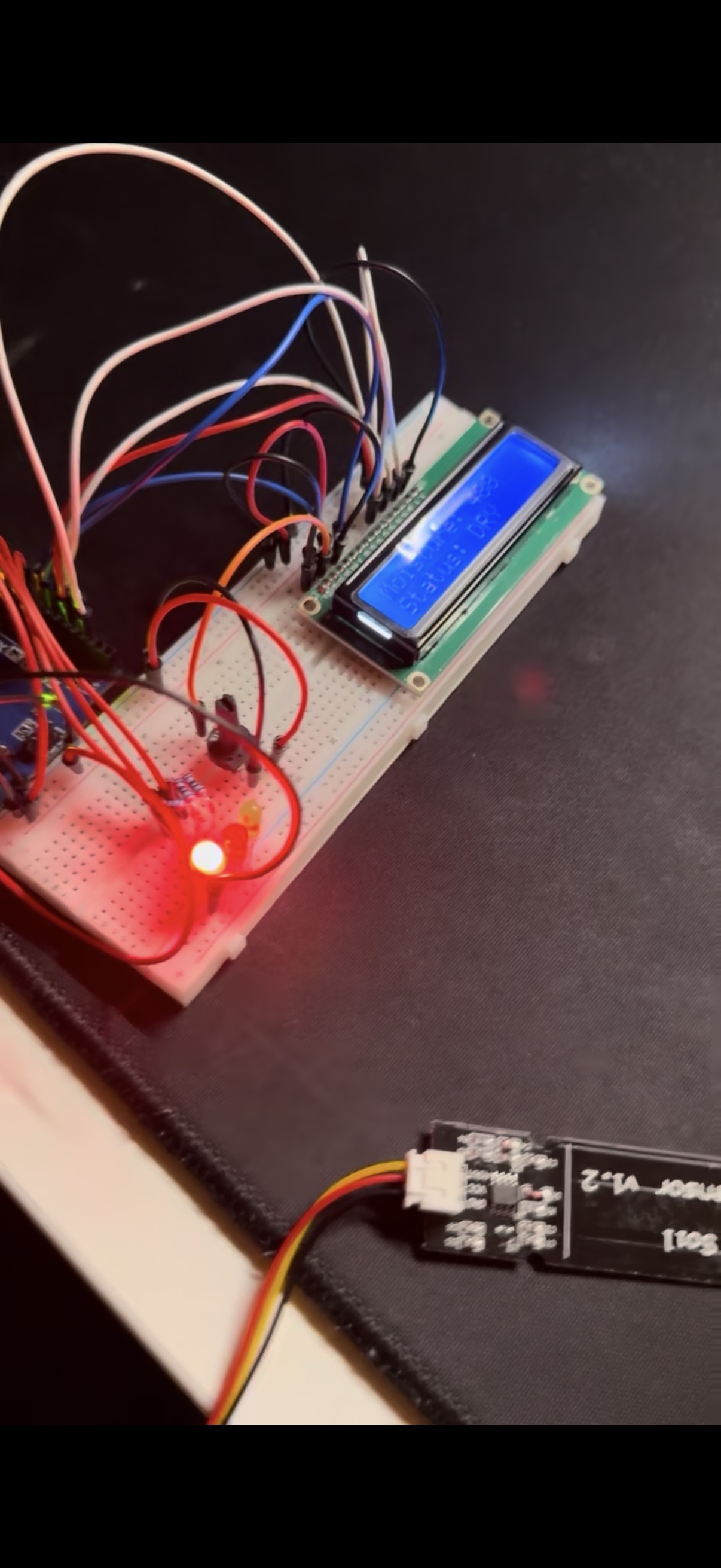

This independent project focused on designing and building a complete microcontroller-based system for acquiring and processing soil moisture data in real time. The motivation came from wanting to understand how embedded sensors can be used to automate environmental monitoring, a field with growing applications in precision agriculture, smart greenhouses, and sustainable land management. The project combined embedded firmware development, analog sensor calibration, serial data logging, and mechanical enclosure design into a single, field-ready monitoring solution.

Technical Approach

The system is built around an ESP32 microcontroller paired with a capacitive soil moisture sensor. I chose a capacitive sensor over a resistive one because capacitive sensors are more durable and less prone to corrosion over time, making them better suited for long-term outdoor deployment. The firmware, written in embedded C/C++, samples the sensor's analog output at configurable intervals and converts raw ADC readings into calibrated moisture percentages using polynomial calibration constants derived from controlled test measurements.

A threshold-based alert system was implemented so that the device can flag when soil moisture levels drop below or rise above user-defined bounds. These alerts are output over serial and could easily be extended to trigger an LED, buzzer, or wireless notification in a future iteration. Data is continuously logged over the serial interface, allowing readings to be captured on a connected computer for trend analysis and visualization.

Mechanical Design

To make the system practical for real-world use, I designed a custom 3D-printed enclosure in Fusion 360. The enclosure protects the microcontroller and wiring from moisture, dirt, and physical damage while keeping the sensor probe exposed for consistent ground contact. I went through multiple design iterations, adjusting wall thickness, cable routing channels, and ventilation slots to balance protection with accessibility for maintenance and reprogramming.

Results and Impact

The final system reliably monitors soil conditions and outputs data that can inform irrigation decisions. Testing showed consistent and repeatable readings across different soil types when properly calibrated. I validated the system by comparing its output against a commercial soil moisture meter and found that my calibrated readings fell within an acceptable margin of error for agricultural monitoring purposes.

This project deepened my understanding of the full embedded development cycle, from breadboard prototyping and firmware debugging to physical enclosure fabrication and field testing. It also introduced me to the challenges of designing electronics for outdoor environments, where temperature swings, moisture ingress, and physical wear all affect system longevity. The skills I built here, including sensor interfacing, signal conditioning, and iterative hardware design, are directly applicable to industrial IoT, environmental monitoring, and any domain where physical-world data needs to be captured and processed by embedded electronics. Looking ahead, I plan to extend this project with wireless data transmission using the ESP32's built-in Bluetooth or Wi-Fi capabilities, enabling remote monitoring through a web dashboard or mobile application. This would transform the system from a local data logger into a true connected IoT device.

Overview

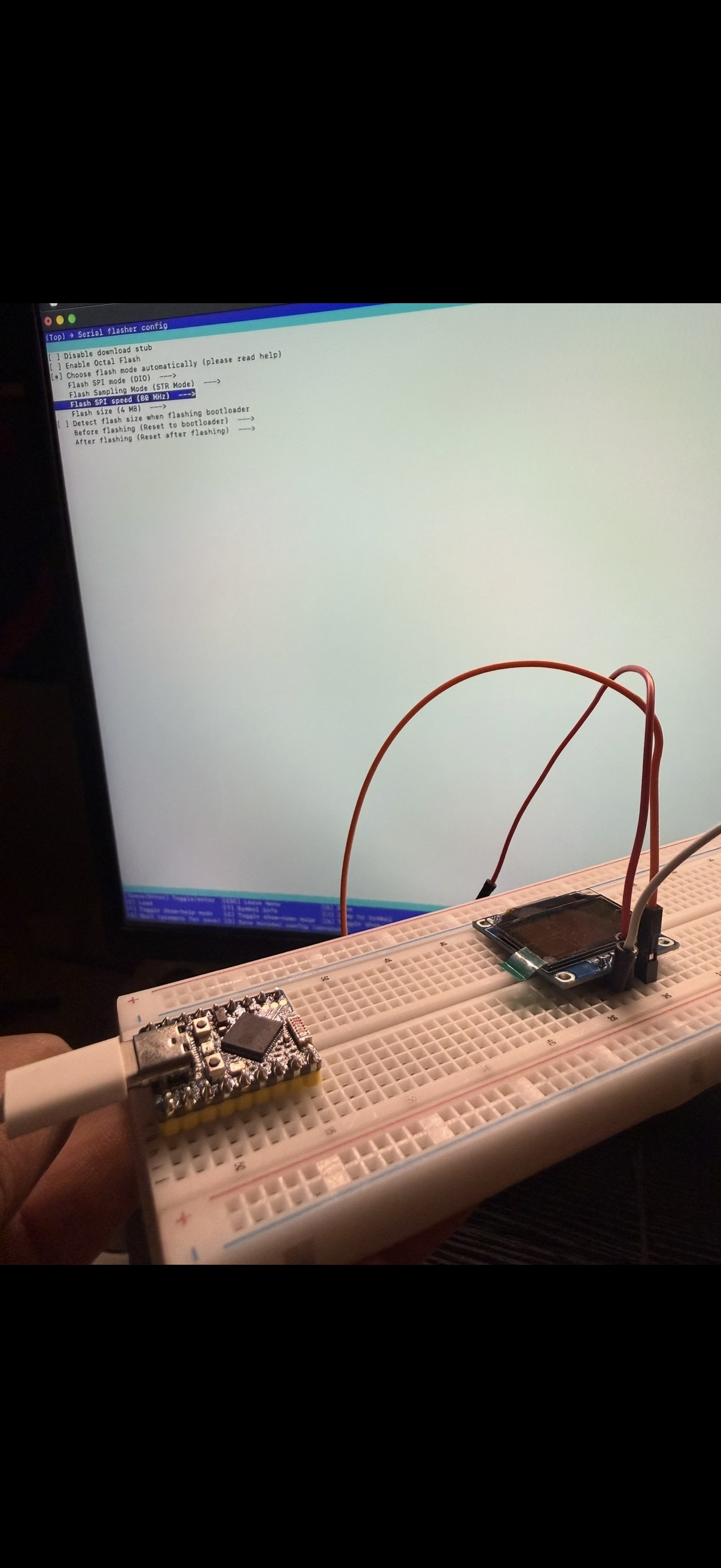

This project explored the frontier of edge AI by attempting to run a large language model on an ESP32 microcontroller, a device with just a few hundred kilobytes of usable RAM. The goal was to investigate how far natural language processing can be pushed on resource-constrained hardware without relying on cloud connectivity. This sits at the intersection of two rapidly converging fields: artificial intelligence and embedded systems.

Technical Approach

Running any form of language model on a microcontroller requires aggressive optimization at every level of the stack. I researched and experimented with model quantization techniques, which reduce the precision of model weights from 32-bit floating point down to 8-bit or even 4-bit integers. This dramatically shrinks memory requirements while preserving a usable level of output quality. I also explored model pruning, which removes less important connections in the neural network to further reduce the computational footprint.

On the firmware side, I optimized the inference pipeline to minimize memory allocation overhead and reduce latency between token generations. The ESP32's dual-core architecture was leveraged to separate the inference computation from the I/O handling, ensuring that the device remained responsive during generation. Memory management was a constant challenge, requiring careful use of heap allocation and buffer reuse to avoid fragmentation on a system with no virtual memory.

Challenges and Learning

The biggest challenge was balancing model capability against hardware limitations. A more capable model produces better output but requires more memory and processing time than the ESP32 can comfortably provide. Finding the sweet spot required extensive experimentation with different model architectures, quantization levels, and context window sizes. Debugging was also more difficult than typical software development because errors often manifested as subtle memory corruption rather than clean error messages.

Results and Impact

The project successfully demonstrated that meaningful text generation can happen locally on a microcontroller, even if the output quality and speed do not match cloud-hosted models. Working within these severe hardware limitations taught me more about efficient computing, memory management, and optimization than any textbook could. It reinforced my belief that the future of AI is not exclusively in the cloud. There is a growing need for on-device intelligence in applications where latency, privacy, or connectivity constraints make cloud-based solutions impractical, and this project gave me hands-on experience with the engineering tradeoffs involved. It also sharpened my C/C++ skills in ways that conventional software projects do not, since every byte of memory and every CPU cycle matters when you are working at the hardware level. The debugging process alone, using serial output, logic analyzers, and memory profiling tools, taught me systematic approaches to diagnosing problems that I continue to apply in all of my embedded work. As edge AI continues to mature, I believe the ability to deploy models on low-cost, low-power hardware will become a critical skill for engineers working in consumer electronics, wearables, and autonomous systems.

Overview

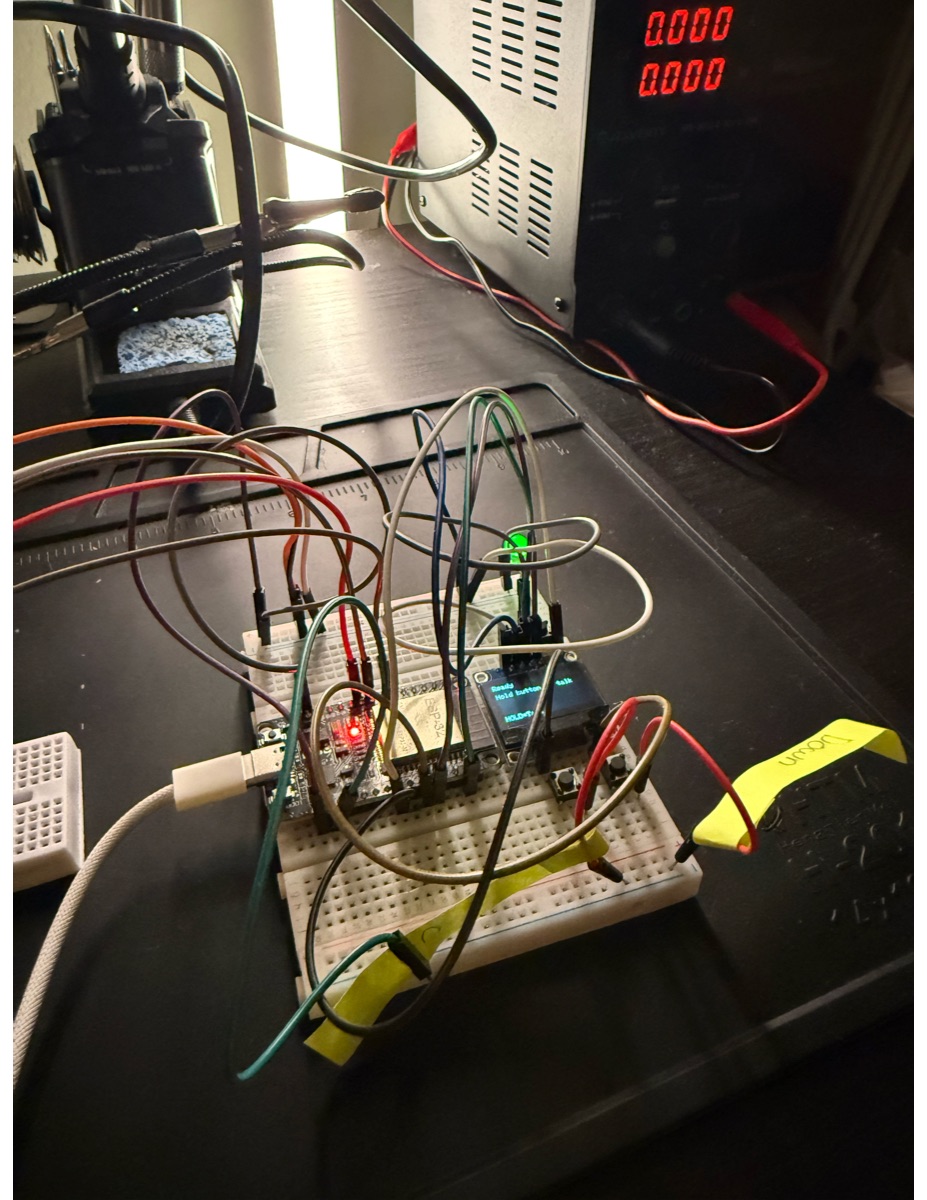

This project involved building a standalone, handheld AI terminal by connecting an ESP32 microcontroller with an integrated display to OpenAI's ChatGPT API over Wi-Fi. The idea was to create a dedicated, screen-based device that lets a user type a question, send it to the cloud, and read the AI-generated response directly on the device's display, all without needing a phone or computer. The project brought together networking, embedded UI design, and firmware programming into a single cohesive piece of hardware.

Technical Approach

The core of the system is an ESP32 connected to a small integrated screen. On boot, the device connects to a configured Wi-Fi network and waits for user input. When a query is submitted, the firmware establishes a secure HTTPS connection to OpenAI's API endpoint, constructs a properly formatted JSON request payload, and sends it over the network. Handling HTTPS on a microcontroller required configuring TLS certificates and managing the handshake process within tight memory constraints. The API response is received as a JSON object, parsed on-device, and the relevant text content is extracted for display.

Displaying long responses on a small screen required building a custom text rendering engine. I implemented word-wrapping logic that breaks text at word boundaries to avoid cutting words mid-line, a page buffering system that divides long responses into screen-sized pages, and smooth scrolling controlled by two physical push buttons (up and down). Hardware interrupts on the button pins ensure that scrolling input is captured instantly, even while the device is processing or waiting for a network response.

User Experience Design

Because network requests to the ChatGPT API can take several seconds, I designed the interaction flow to keep the user informed at every stage. A loading animation plays while the request is in flight, and responses are displayed incrementally as they are parsed rather than waiting for the entire response to arrive. This chunked display approach makes the device feel significantly more responsive. I also added visual indicators for Wi-Fi connection status and error states so the user always knows what the device is doing.

Results and Impact

The finished device functions as a self-contained AI assistant that fits in the palm of your hand. It demonstrates that powerful cloud-based AI services can be made accessible through minimal, low-cost hardware. The total component cost is under twenty dollars, making it a compelling proof of concept for applications in education, accessibility, and rapid prototyping of AI-powered tools. Building this project strengthened my skills in embedded networking, display driver programming, interrupt-driven input handling, and designing user experiences under the constraints of limited screen real estate and processing power. It also gave me a deeper appreciation for how much engineering goes into making technology feel intuitive. Even something as simple as scrolling through text on a small screen requires careful thought about timing, debouncing, buffer management, and visual feedback. These are the details that separate a working prototype from a polished product, and this project pushed me to care about both.
